320 kmph Speed Ready: Mumbai-Ahmedabad Bullet Train Gets Cutting-Edge Movable Crossings
The Mumbai-Ahmedabad High-Speed Rail (MAHSR) project is making history by introducing "movable crossing" technology to the Indian railway network for the very first time. This specialized hardware is a game-changer for the corridor, specifically engineered to handle the extreme demands of trains traveling at speeds of up to 320 kmph.
Solving the High-Speed Vibration Problem
In traditional railway systems, fixed-crossing turnouts are the standard. However, as speeds climb beyond 250-300 kmph, these conventional tracks face significant challenges. The gap found at the nose of a standard crossing creates a discontinuity in the rail, which leads to several technical issues:
- Increased Dynamic Forces: The gap causes heavy impact when wheels pass over it.
- Noise Pollution: Discontinuities lead to higher structure-borne noise.
- Rapid Wear: Constant impact accelerates the wear of both wheel flanges and crossing components.
- Unstable Movement: Irregular wheel behavior can occur due to track irregularities.

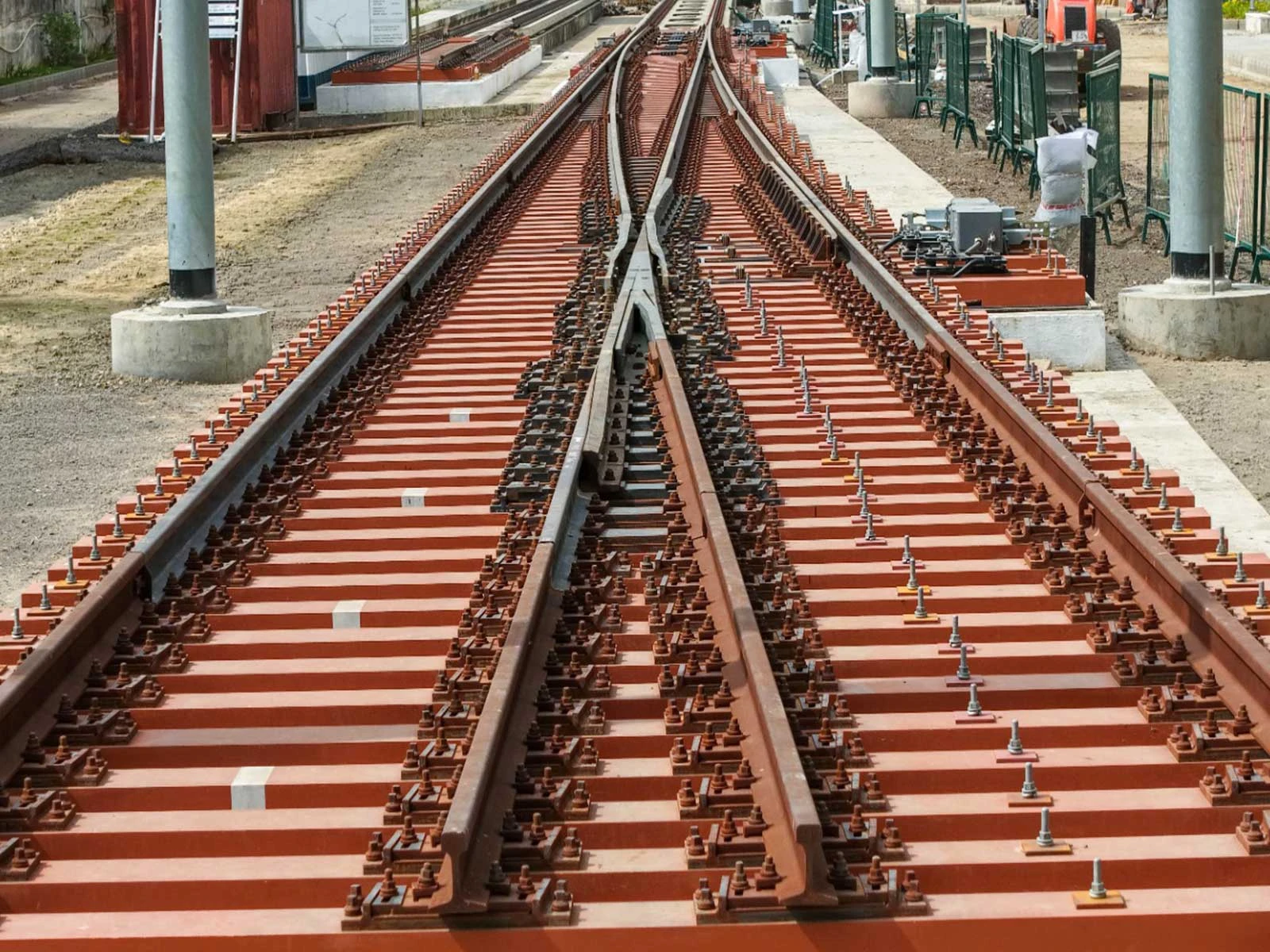

The Innovation: Swing-Nose Technology
To overcome these hurdles, the MAHSR project is adopting swing-nose crossings. Unlike fixed tracks, this technology allows the crossing nose to move in perfect coordination with the switch rails. By shifting the nose, the system eliminates the gap entirely, creating a continuous running surface.
This seamless transition offers several critical benefits for both passengers and operators:
- Smoother passage through turnouts.
- Significant reduction in dynamic impact and vibrations.
- Lower interior noise levels for a more comfortable ride.
- Extended life for both the rails and the rolling stock.
Advanced Safety with Dual Point Machines
Safety is paramount at ultra-high speeds, and the new turnouts are equipped with a sophisticated dual-machine arrangement to ensure absolute reliability.
Coordinated Control System
The system utilizes two independent point machines that work under a unified control command:
- Switch-End Point Machine: Operates and locks the switch rails.
- Movable-Crossing Point Machine: Operates and locks the movable crossing nose.
Before a train is authorized to move over a turnout, the signaling interlocking system requires positive position detection and locking confirmation from both machines. This ensures that a continuous and mechanically secure rail path is established at every critical point, meeting the stringent technical requirements necessary for high-speed operations.
